            Technical Scribble

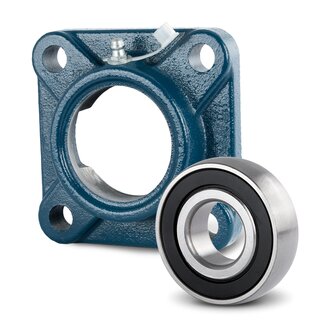

            Flange Housing Unit CSF208 as a Set Comprising Bearing Insert CS208-2RS and Flange Housing F208 - Shaft: 40 mm
The housing bearing unit CSF208 as a set includes the 4-hole flange housing F208 and the single row radial insert ball bearing CS208-2RS (shaft: 40 mm). The set components are coordinated with each other so that they can be mounted directly. The set is suitable for high radial loads and high speeds.
Technical Data
| Inside (mm): | 40 |
| Shaft Fastening: | Tight Fit |
| Housing Type: | Flange |
| Grub Screw: | - |
| Bearing No.: | CS208-2RS |
| Housing No.: | F 208 |
| Ring Material: | Rolling bearing steel |
| Rolling Element Material: | Rolling bearing steel |
| Cage Material: | Sheet Steel |
| Housing Material: | Cast Iron |
| Tolerance Class: | ABEC 1 / P0 |
| Number of Mounting Holes: | 4 |
| Product weight: | 1,6100 kg |
Item number: CSF208-Set
           If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 17.17
