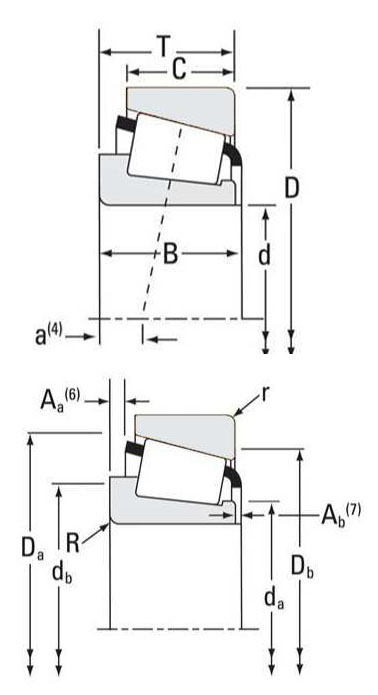

Technical Scribble

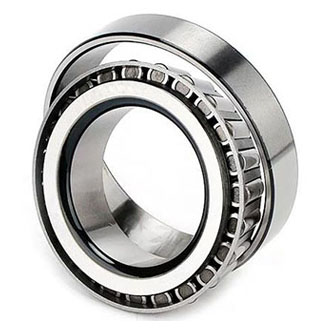

A2037-A2126 0.375"x1.938"x0.9063"
Technical Data
| Series | A2000 |
| Cone Part Number | A2037 |
| Cup Part Number | A2126 |
| Design Unit | Inch |
| Bearing Weight | 0.1 lb
0.045 Kg |
| Cage Material | Stamped Steel |
| d - Bore | 3/8 in
9.525 mm |
| D - Cup Outer Diameter | 1.2595 in
31.991 mm |
| B - Cone Width | 0.4246 in
10.785 mm |
| C - Cup Width | 0.3125 in
7.938 mm |
| T - Bearing Width | 0.3940 in
10.008 mm |
| R - Cone Backface "To Clear" Radius1 | 0.05 in
1.3 mm |
| r - Cup Backface "To Clear" Radius2 | 0.050 in
1.27 mm |
| da - Cone Frontface Backing Diameter | 0.53 in
13.5 mm |
| db - Cone Backface Backing Diameter | 0.59 in
15 mm |
| Da - Cup Frontface Backing Diameter | 1.18 in
30.00 mm |
| Db - Cup Backface Backing Diameter | 1.02 in
25.91 mm |
| Ab - Cage-Cone Frontface Clearance | 0.09 in
2.3 mm |
| Aa - Cage-Cone Backface Clearance | -0.03 in
-0.8 mm |
| a - Effective Center Location3 | -0.12 in
-3 mm |
| C90 - Dynamic Radial Rating (90 million revolutions)4 | 630 lbf
2800 N |
| C1 - Dynamic Radial Rating (1 million revolutions)5 | 2430 lbf
10800 N |
| C0 - Static Radial Rating | 2070 lbf
9230 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 437 lbf
1940 N |
| K - Factor7 | 1.44 |
| e - ISO Factor8 | 0.41 |
| Y - ISO Factor9 | 1.48 |
| G1 - Heat Generation Factor (Roller-Raceway) | 1.7 |
| G2 - Heat Generation Factor (Rib-Roller End) | 3.2 |
| Cg - Geometry Factor10 | 0.0308 |
Item number: A2037-A2126
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 25.32
pcs
