Technical Scribble

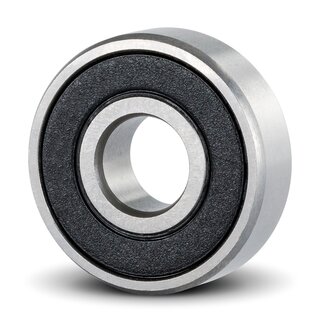

1602-2RS 0.25"x0.6875"x0.3125"
Technical Data
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Sealed |
| Part Number | S1602 2RS |
| For Shaft Diameter | 0.25" |
| Bore Dia (d) | 0.25" | 6.35 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| For Housing ID | 0.6875" |
| Outer Dia (D) | 0.6875" | 17.463 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width (B) | 0.3125" | 7.938 mm |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | Bearing Steel |
| Ball Material | Bearing Steel |
| Cage Material | Bearing Steel |
| Seals Material | NBR |
| Dynamic radial (Newtons) | 571.5 |
| Static radial (Newtons) | 216 |
| Max Speed (X1000 RPM) | 5.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.003mm to 0.018mm |
| RoHS | Compliant |
| Weight (g) | 6.3 |
Item number: 1602-2RS
If your demand is large, please contact us for quotation and delivery time.
Delivery time:3 to 7 business day
$ 2.10
pcs
